Using MVC architecture in Next.js with Prisma ORM

Summary

M : Model = Prisma (data + repositories)

V : React = Server/client components

C : Controller = Route handlers + server actions

Why ? Keep your application simple and scalable

For this we'll use an example application

Application architecture

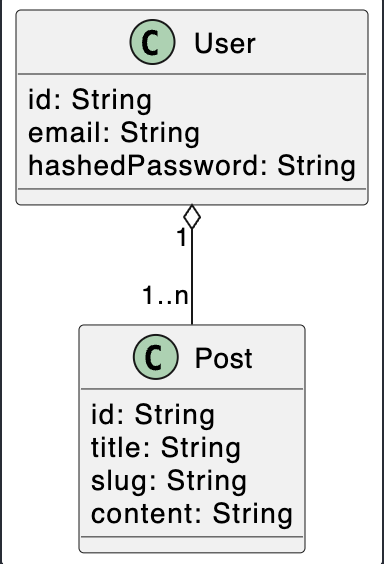

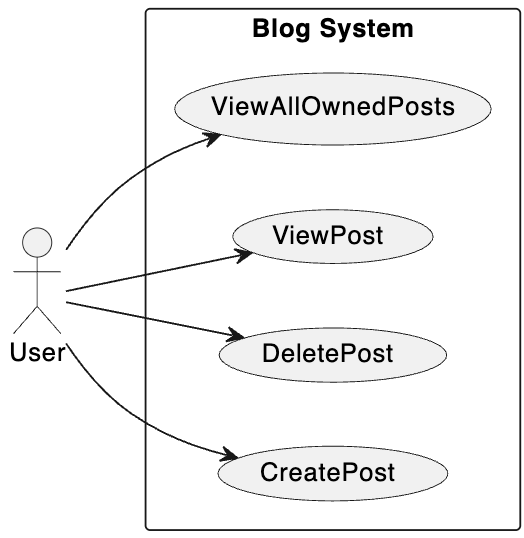

1. Usecase and class diagram

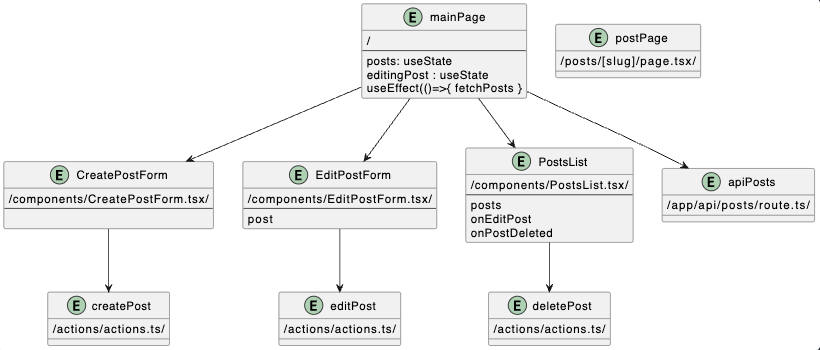

2. Components diagram

The plantuml source of this diagram you can find here

What does MVC have to do with it ?

1. the M stands for model

This handles the DB configuration and the DB access via Prisma

1generator client {
2  provider = "prisma-client-js"
3  output   = "../src/generated/prisma"
4}
5
6// prisma/schema.prisma
7datasource db {
8  provider = "postgresql"
9  url      = env("DATABASE_URL")
10}
11
12model User {
13  id             String @id @default(cuid())
14  email          String @unique
15  hashedPassword String
16  posts          Post[] // One User can have many Posts
17}
18
19model Post {
20  id        String   @id @default(cuid())
21  title     String
22  slug      String   @unique
23  content   String
24  published Boolean? @default(false)
25  imageUrl  String?
26  author    User     @relation(fields: [authorId], references: [id]) // Each Post belongs to one User
27  authorId  String
28  updatedAt DateTime @updatedAt
29  createdAt DateTime @default(now())
30
31  @@index(slug)
32}

Two models are defined : User and Post

2. The Controller part

In the controller layer, you define the actions (use cases) the application must perform.

In this application we have three actions :

createPost, editPost, deletePost : In our case, those also correspond to the features (use-cases) of the use-case diagram

in the componentsdiagram you will them see too at the bottom.

createPostCode :

1'use server';
2
3import prisma from '@/lib/db';
4import { revalidatePath } from 'next/cache';
5import { Prisma } from '@/generated/prisma';
6
7export async function createPost(formData: FormData) {
8  try {
9    await prisma.post.create({
10      data: {
11        title: formData.get('title') as string,
12        slug: (formData.get('title') as string)
13          .replace(/\s+/g, '-')
14          .toLowerCase(),
15        content: formData.get('content') as string,
16        author: {
17          connect: {
18            email: 'john@gmail.com',
19          },
20        },
21      },
22    });
23  } catch (error) {
24    if (error instanceof Prisma.PrismaClientKnownRequestError) {
25      console.log('error code :', error.code);
26      if (error.code === 'P2002') {
27        console.log(
28          'There is a unique constraint violation, a new user cannot be created with this email'
29        );
30      }
31    }
32    // console.error(error);
33  }
34  revalidatePath('/posts');

You see that the controller uses prisma (the model) to access the database.

3. The view part

This is the user interface of the application used by our actors (in the usecase diagram).
Those are the jsx components of our application. In the components diagram you see that the createPostForm component will use the createPost Action (or controller) to create a post.

createPostForm code

1import { createPost } from '@/actions/actions';
2
3export default function CreatePostForm() {
4  return (
5    <form
6      action={createPost}
7      className="flex flex-col gap-y-3 w-[300px] bg-white p-6 rounded-lg shadow-sm"
8    >
9      <input
10        type="text"
11        name="title"
12        placeholder="Title"
13        className="px-3 py-2 rounded-md border border-gray-300 focus:outline-none focus:ring-2 focus:ring-blue-500 focus:border-transparent"
14        required
15      />
16      <textarea
17        name="content"
18        rows={5}
19        placeholder="Content"
20        className="px-3 py-2 rounded-md border border-gray-300 focus:outline-none focus:ring-2 focus:ring-blue-500 focus:border-transparent"
21        required
22      />
23      <button
24        type="submit"
25        className="bg-blue-600 hover:bg-blue-700 py-2 text-white rounded-md font-medium transition-colors"
26      >
27        Create Post
28      </button>
29    </form>
30  );
31}

4. This post is inspired by this nice video

thank you bytegrad !
